Product Features
Similar to our Reverse Smart Autobraking system, Easy doc provides the flexibility of having Autobraking safety using the same Radar Detection sensor for HGV Trailers. This system will use the Trailer braking with all makes HALDEX, WABCO and KNORR-BREMSE. This has a huge benefit for Fleet operators who dont just have a rigid vehicles but have a Truck and trailer combo, because you can connect any Tractor Unit to a Trailer with our Autobraking system fitted and when Reversing the Driver will see in their mirror LEDs flash and then go permanent when the Trailer reaches an object or person stood behind the trailer.
Reduces risk of worker related incidents.
Reduces risk to pedestrian in public areas.
Saves expense on vehicle repairs.
Saves expense on property repairs.
Any Tractor unit can be coupled up and benefit from Reverse autobrake assistance.
https://www.youtube.com/@DoctorAir-Brake
More InformationProduct Description

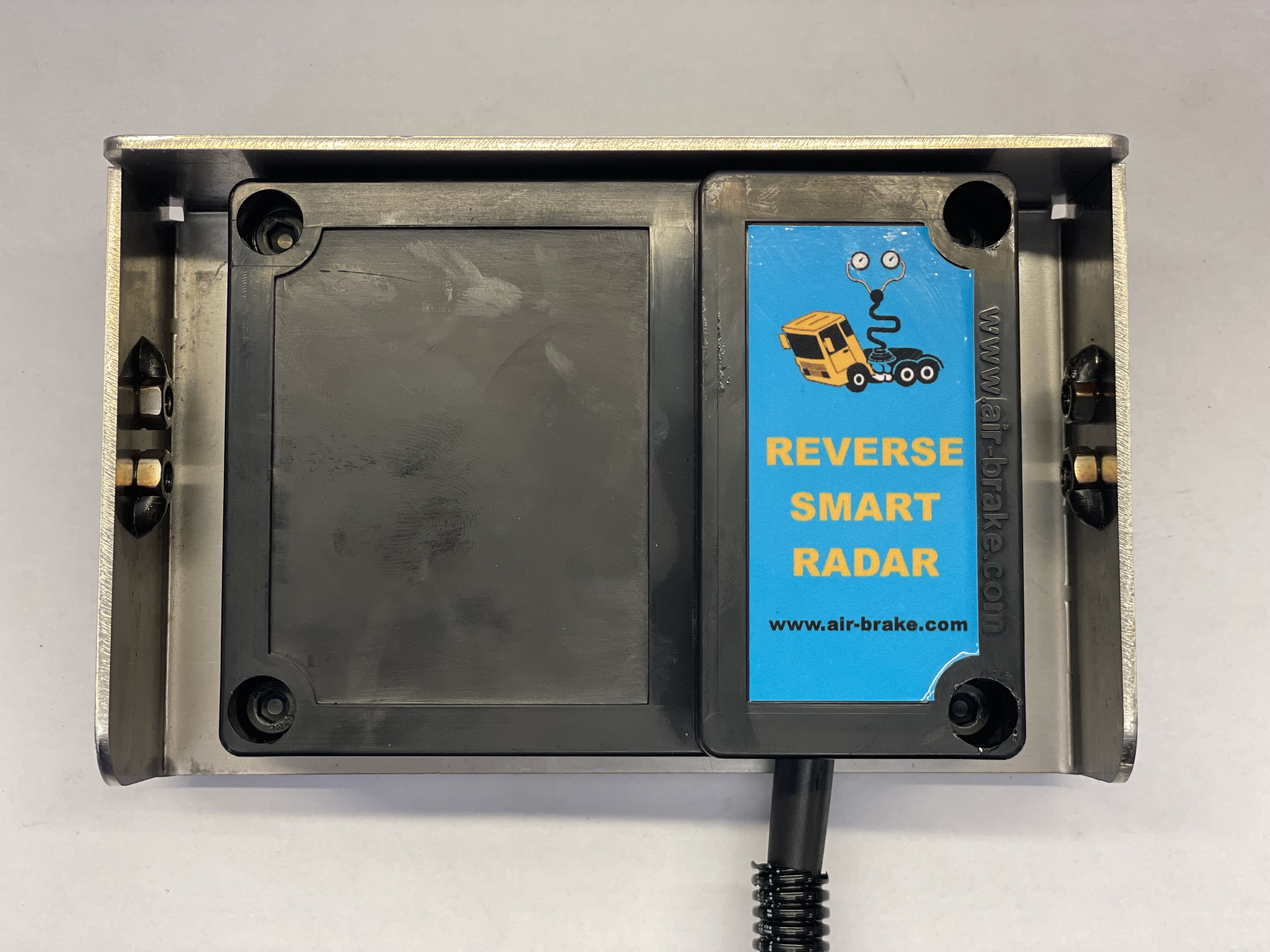

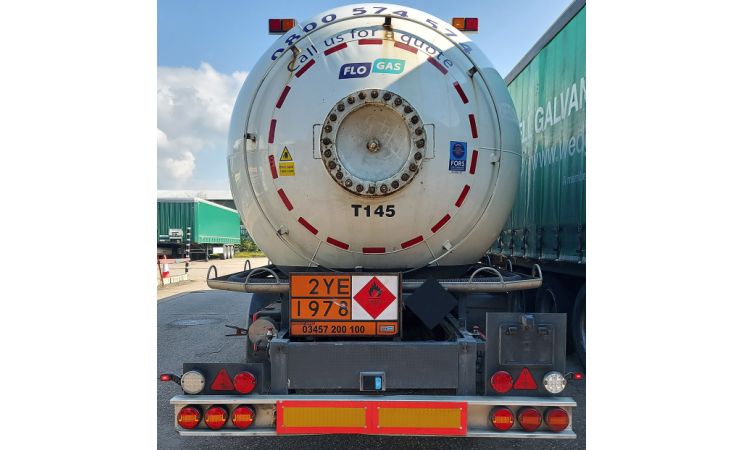

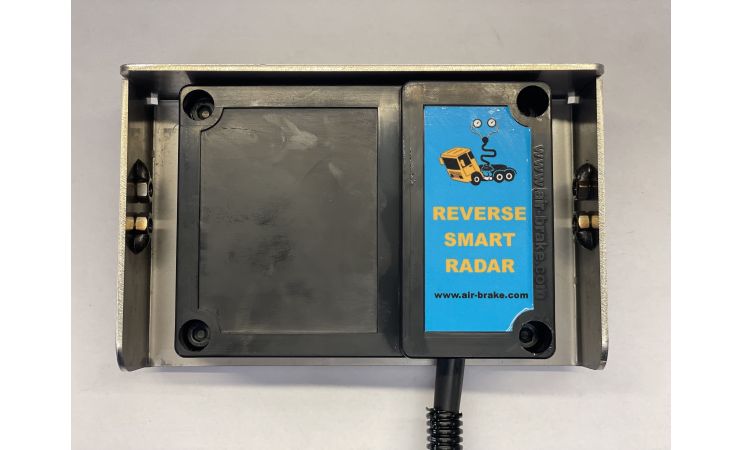

Our system operates through the utilisation of a highly sophisticated 77GHz radar sensor, meticulously designed to measure distances of up to 51 meters and across the entire width behind the vehicle. The radar range is subdivided into three distinct zones and we program these detecion zones from 10 meters. The LED stalks on the rear of the trailer will provide a clear indication to caution the driver regarding object proximity, with a precision down to a 1-meter zone, when the brakes are activated for a duration of 3 seconds.
Following this time frame, the braking mechanism is automatically disengaged, enabling seamless reversal towards the loading dock. However, it's important to note that during this phase, all speed has been removed allowing the standard buffers to do their job.
https://www.youtube.com/@DoctorAir-Brake
If you would like to know more details of how this can stop damage to your trailer fleet and protect workers then get in touch at john.grindey@air-brake.com
OR Give us a call UK 01785 714447
